BIOSTAR MICROTECH INTERNATIONAL CORPORATION

1333UCG/1340UCG/1333UCQ/1340UCQ

Processor

80386DX/CX486DLC

Processor Speed

33/40MHz

Chip Set

Biostar

Max. Onboard DRAM

32MB

Cache

32/128KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80387DX/CX87DLC

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

JP19

Reset switch

JP22

Speaker

JP20

Turbo switch

JP23

Turbo LED

JP21

5 volt ground

JP24

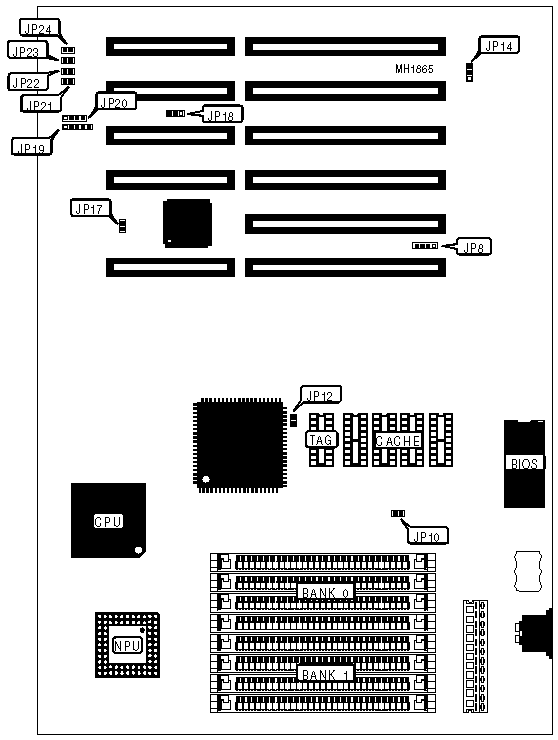

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

CMOS memory normal operation (Internal Battery)

JP8

pins 2 & 3 closed



CMOS memory normal operation (External Battery)

JP8

pins 1 & 4 closed



CMOS memory clear

JP8

pins 3 & 4 closed

»

Monitor type select color

JP14

pins 2 & 3 closed



Monitor type select monochrome

JP14

pins 1 & 4 closed

»

CPU speed select 66Mhz

JP17

Closed



CPU speed select 80Mhz

JP17

Open

»

NPU enabled

JP18

pins 1 & 4 closed



NPU disabled

JP18

pins 2 & 3 closed

CACHE CONFIGURATION

Size

Bank 0

Tag

32KB

(4) 8K x 8

(1) 8K x 8

128KB

(4) 32K x 8

(1) 8K x 8

CACHE CONFIGURATION

Size

JP10

JP12

32KB

Open

Open

128KB

Closed

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 1M x 9

(4) 256K x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

17MB

(4) 4M x 9

(4) 256K x 9

20MB

(4) 4M x 9

(4) 1M x 9

32MB

(4) 4M x 9

(4) 4M x 9
