SILICON VALLEY COMPUTER, INC.
ADP50-3, GOLD CARD40-T8
|
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two IDE (XT/AT) Interface drives
Floppy drives supported: Two 360KB or 720KB drives (external only)

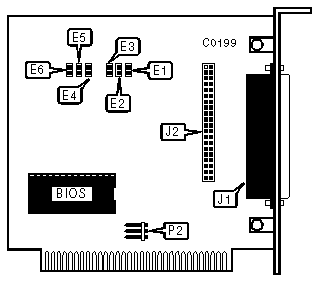

CONNECTIONS | |
Function |
Location |
DB-37 control cable connector-floppy drive |
J1 |
40-pin IDE (XT/AT) Interface connector |
J2 |
5-pin connector-DC power |
P2 |
BIOS ADDRESS | ||||
Select |
E1 |
E2 |
E3 | |
Disabled |
open |
open |
open | |
» |
C800h |
open |
open |
closed |
CA00h |
open |
closed |
closed | |
CC00h |
closed |
open |
closed | |
CE00h |
closed |
closed |
closed |
INTERRUPT REQUEST | ||||
Function |
E4 |
E5 |
E6 | |
» |
Disabled |
open |
open |
open |
IRQ5 |
closed |
open |
closed | |
IRQ2 |
closed |
closed |
open |
MISCELLANEOUS TECHNICAL NOTES |
This controller has a built-in low level format program. To enter the program run the DEBUG utility supplied with DOS and at the prompt enter: G=C800:6. |
