DATA TECHNOLOGY CORPORATION
DTC51-2G
| |
Data bus: |
8-bit, ISA |
Size: |
Half-length, full-height card |
Hard drive supported: |
Up to seven SCSI devices |
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

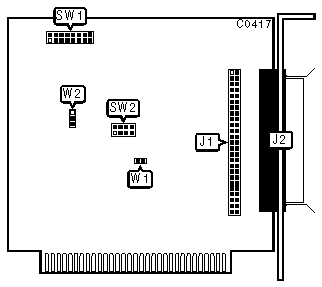

CONNECTIONS | |
Function |
Location |
50-pin SCSI connector - internal |
J1 |
26-pin SCSI connector - external |
J2 |
USER CONFIGURABLE SETTINGS | |||
Function |
Location |
Setting | |
» |
SCSI retries enabled |
SW1/jumper 2 |
open |
SCSI retries disabled |
SW1/jumper 2 |
closed | |
» |
SCSI parity check enabled |
SW1/jumper 3 |
closed |
SCSI parity check disabled |
SW1/jumper 3 |
open | |
» |
DMA Channel 1 enabled |
SW1/jumper 5 |
closed |
DMA Channel 3 enabled |
SW1/jumper 5 |
open | |
» |
DMA enabled |
SW1/jumper 6 |
open |
DMA disabled |
SW1/jumper 6 |
closed |
I/O PORT ADDRESS - SW1 | |||
Address |
SW1/jumper 7 |
SW1/jumper 8 | |
320h |
closed |
closed | |
» |
330h |
closed |
open |
340h |
open |
closed |
BIOS ADDRESS - SW2 | |||||
Address |
SW2/jumper 1 |
SW2/jumper 2 |
SW2/jumper 3 |
SW2/jumper 4 | |
C000h |
closed |
closed |
closed |
closed | |
C400h |
closed |
closed |
closed |
open | |
C800h |
closed |
closed |
open |
closed | |
CC00h |
closed |
closed |
open |
open | |
D000h |
closed |
open |
closed |
closed | |
D400h |
closed |
open |
closed |
open | |
» |
D800h |
closed |
open |
open |
closed |
DC00h |
closed |
open |
open |
open | |
E000h |
open |
closed |
closed |
closed | |
E400h |
open |
closed |
closed |
open | |
E800h |
open |
closed |
open |
closed | |
EC00h |
open |
closed |
open |
open | |
F000h |
open |
open |
closed |
closed | |
F400h |
open |
open |
closed |
open | |
F800h |
open |
open |
open |
closed | |
FC00h |
open |
open |
open |
open |
MISCELLANEOUS TECHNICAL NOTES |
Jumpers SW1/jumper 1, SW1/jumper 4, W2, and W2 are factory configured as follows: SW1/jumper 1 - open, SW1/jumper 4 - closed, Jumper W1 - closed, Jumper W2 - pins 2 & 3 closed. Do not alter these settings. |
