ADAPTEC, INC.
ACB-2072
| |
Data bus: |
8-bit, ISA |
Size: |
Half-length, full-height card |
Hard drives supported: |
Two RLL ST506 drives |
Floppy drives supported: |
None |

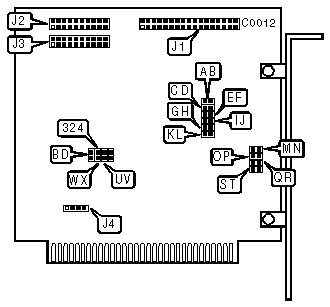

CONNECTIONS | |
Function |
Location |
34-pin control cable connector-hard drive |
J1 |
20-pin data cable connector-drive 0 |
J2 |
20-pin data cable connector-drive 1 |
J3 |
4-pin connector-DC power |
J4 |
USER CONFIGURABLE SETTINGS | |||
Function |
Location |
Setting | |
» |
BIOS enabled |
BD |
open |
BIOS disabled |
BD |
closed | |
» |
I/O port address is 320h |
324 |
open |
I/O port address is 324h |
324 |
closed | |
» |
Drive 0 is defined with Jumpers MN & OP |
AB |
open |
Drive 0 is a Syquest drive |
AB |
closed | |
» |
Drive 1 is defined with Jumpers QR & ST |
CD |
open |
Drive 1 is a Syquest drive |
CD |
closed | |
» |
Factory configured - do not alter |
EF |
open |
» |
Factory configured - do not alter |
GH |
open |
» |
Factory configured - do not alter |
IJ |
open |
» |
Normal Operation |
KL |
open |
Self-diagnostics enabled |
KL |
closed |
BIOS ADDRESS | |||
Select |
Jumper WX |
Jumper UV | |
» |
C800h |
open |
open |
CA00h |
open |
closed | |
F800h |
closed |
open | |
CC00h |
closed |
closed |
BIOS DRIVE TYPE TABLE | |||||
Table # |
Hds |
Cyls |
RLL Cap. |
Jumper MN Drive 0 Jumper QR- Drive 1 |
Jumper OP- Drive 0 Jumper ST- Drive 1 |
0 | 4 |
612 | 32.74MB |
closed |
closed |
1 | 2 |
612 | 16.29MB |
closed |
open |
2 | 5 |
981 | 65.29MB |
open |
closed |
3 | 4 |
615 | 32.58MB |
open |
open |
