ACCULOGIC
SIDE-1/16
| |
Data bus: |
8-bit, ISA |
Size: |
Half-length, full-height card |
Hard drives supported: |
Two IDE(AT) drives |
Floppy drives supported: |
None |

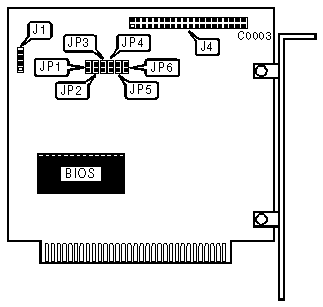

CONNECTIONS | |
Function |
Location |
4-pin connector-Drive Active LED |
J1 |
40-pin XT Interface (IDE) connector |
J4 |
USER CONFIGURABLE SETTINGS | |||
Function |
Location |
Setting | |
» |
BIOS enabled |
JP1 |
open |
BIOS disabled |
JP1 |
closed | |
» |
Hard drive enabled |
JP6 |
closed |
Hard drive disabled |
JP6 |
open |
BIOS ADDRESS | |||
Address |
Jumper JP2 |
Jumper JP3 | |
» |
C800h |
open |
open |
CC00h |
open |
closed | |
D800h |
closed |
open | |
DC00h |
closed |
closed |
INTERRUPT REQUEST | |||
IRQ |
Jumper JP4 |
Jumper JP5 | |
» |
Interrupt Request is IRQ5 |
open |
closed |
Interrupt Request is IRQ2 |
closed |
open |
