HEWLETT-PACKARD COMPANY

HPC1533A

Device Type

Internal Tape Drive

Interface

SCSI-2

Format

DDS

Sustained Transfer Rate

510 KBPS

Size

3.5 in. half height

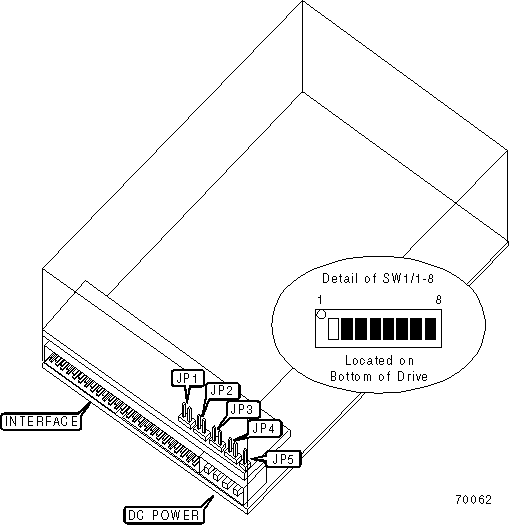

View

Top

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP5

Unidentified

»

Media Recognition System disabled

SW1/3

On



Media Recognition System enabled

SW1/3

Off

»

Factory configured - do not alter

SW1/4

On

»

Factory configured - do not alter

SW1/5

On

»

Factory configured - do not alter

SW1/6

On

»

Factory configured - do not alter

SW1/7

On

»

Factory configured - do not alter

SW1/8

On

USER CONFIGURABLE SETTINGS (CONTINUED)

Function

SW1/1

SW1/2

Data compression disabled

Off

Off

Data compression disabled managed by system

Off

On

Data compression enabled not managed by system

On

Off

Data compression enabled managed by system

On

On

DRIVE SELECT ID

Drive ID

JP2

JP3

JP4

0

Open

Open

Open

1

Open

Open

Closed

2

Open

Closed

Open

3

Open

Closed

Closed

4

Closed

Open

Open

5

Closed

Open

Closed

6

Closed

Closed

Open

7

Closed

Closed

Closed

TERMINATION POWER SELECTION

Setting

JP1

»

TERMPWR supplied by drive

Open



TERMPWR supplied by drive to SCSI interface

Closed

MANUFACTURERS RECOMMENDED MEDIA

Tape

Capacity Without Compression

Capacity With Compression

60 meter DDS cartridge

1.3GB

2.6GB

90 meter DDS cartridge

2.0GB

4.0GB

120 meter DDS cartridge

4.0GB

8.0/16.0GB

Note: Maximum capacity is dependent on data type.

DIAGNOSTIC LED(S)

LED1

(Green/Yellow)

LED2

(Green/Yellow)

Condition

Off

Off

No power/drive Idle, no cartridge

Off

Flash (Green)

No cartridge, drive active

On (Green)

Flash (Green)

Cartridge present, drive active

On (Green)

On (Green)

Cartridge loaded, drive idle

On (Green)

Off

Cartridge present but not loaded

Pulse (Green)

Pulse (Green)

Cartridge loading or unloading

Pulse (Yellow)

Pulse (Green)

Write protect cartridge loading or unloading

On (Yellow)

On (Green)

Write protect cartridge loaded, drive idle

On (Yellow)

Off

Write protect cartridge present but not loaded

On (Yellow)

On (Green)

Write protect cartridge loaded, drive active

On (Green)

Pulse (Green)

Caution (media warning) - cleaning tape required

Pulse (Yellow)

On (Yellow)

Self test failed

Pulse (Yellow)

Pulse (Yellow)

Drive powering on
