DTK COMPUTER, INC.

PRM-0032I (VER. 1.00)

Processor

Pentium Pro

Processor Speed

180/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

384MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

AMI

Dimensions

330mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), SCSI interface, Wide SCSI interface, parallel port, PS/2 mouse port, serial ports (2), IR connector, USB connectors (2), VRM connectors (2)

NPU Options

None

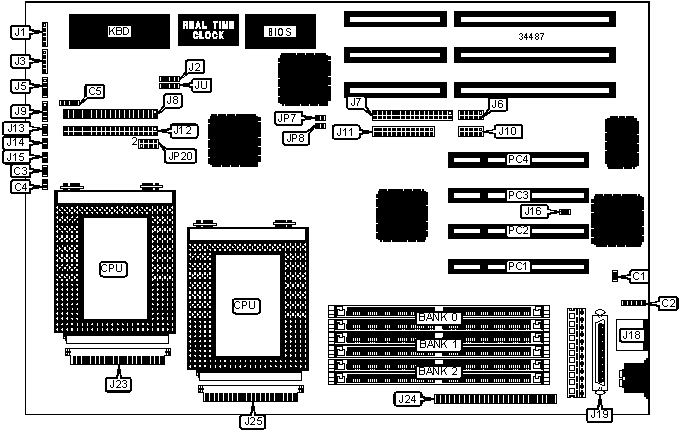

CONNECTIONS

Purpose

Location

Purpose

Location

IR connector

J1

Reset switch

J13

USB connector

J2

Turbo LED

J14

Power LED & keylock

J3

Green PC connector

J15

Speaker

J5

SCSI interface LED

J16

Serial port 1

J6

PS/2 mouse port

J18

Floppy drive interface

J7

Wide SCSI interface

J19

IDE interface 2

J8

VRM connector

J23

IDE interface LED

J9

SCSI interface

J24

Serial port 2

J10

VRM connector

J25

Parallel port

J11

USB connector

JU

IDE interface 1

J12

32-bit PCI slots

PC1 – PC4

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

C1

Unidentified

»

Factory configured - do not alter

C2

Unidentified

»

Factory configured - do not alter

C3

Unidentified

»

Factory configured - do not alter

C4

Unidentified

»

Factory configured - do not alter

C5

Unidentified

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

2MB

(2) 256K x 36

None

None

4MB

(2) 256K x 36

(2) 256K x 36

None

4MB

(2) 512K x 36

None

None

8MB

(2) 512K x 36

(2) 512K x 36

None

10MB

(2) 1M x 36

(2) 256K x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

None

16MB

(2) 2M x 36

None

None

18MB

(2) 2M x 36

(2) 256K x 36

None

20MB

(2) 2M x 36

(2) 512K x 36

None

24MB

(2) 2M x 36

(2) 1M x 36

None

24MB

(2) 1M x 36

(2) 1M x 36

(2) 1M x 36

26MB

(2) 2M x 36

(2) 1M x 36

(2) 256K x 36

28MB

(2) 2M x 36

(2) 1M x 36

(2) 512K x 36

32MB

(2) 4M x 36

None

None

32MB

(2) 2M x 36

(2) 2M x 36

None

34MB

(2) 4M x 36

(2) 256K x 36

None

40MB

(2) 4M x 36

(2) 1M x 36

None

40MB

(2) 4M x 36

(2) 512K x 36

(2) 512K x 36

42MB

(2) 4M x 36

(2) 1M x 36

(2) 256K x 36

48MB

(2) 4M x 36

(2) 2M x 36

None

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

48MB

(2) 4M x 36

(2) 1M x 36

(2) 1M x 36

50MB

(2) 4M x 36

(2) 2M x 36

(2) 256K x 36

56MB

(2) 4M x 36

(2) 2M x 36

(2) 1M x 36

64MB

(2) 8M x 36

None

None

64MB

(2) 4M x 36

(2) 4M x 36

None

74MB

(2) 8M x 36

(2) 1M x 36

(2) 256K x 36

80MB

(2) 8M x 36

(2) 2M x 36

None

80MB

(2) 8M x 36

(2) 1M x 36

(2) 1M x 36

82MB

(2) 8M x 36

(2) 2M x 36

(2) 256K x 36

84MB

(2) 8M x 36

(2) 2M x 36

(2) 512K x 36

88MB

(2) 8M x 36

(2) 2M x 36

(2) 1M x 36

96MB

(2) 8M x 36

(2) 4M x 36

None

96MB

(2) 4M x 36

(2) 4M x 36

(2) 4M x 36

96MB

(2) 8M x 36

(2) 2M x 36

(2) 2M x 36

98MB

(2) 8M x 36

(2) 4M x 36

(2) 256K x 36

100MB

(2) 8M x 36

(2) 4M x 36

(2) 512K x 36

128MB

(2) 8M x 36

(2) 4M x 36

(2) 4M x 36

128MB

(2) 16M x 36

None

None

128MB

(2) 8M x 36

(2) 8M x 36

None

132MB

(2) 8M x 36

(2) 8M x 36

(2) 512K x 36

136MB

(2) 8M x 36

(2) 8M x 36

(2) 1M x 36

136MB

(2) 16M x 36

(2) 1M x 36

None

144MB

(2) 16M x 36

(2) 2M x 36

None

144MB

(2) 16M x 36

(2) 1M x 36

(2) 1M x 36

152MB

(2) 16M x 36

(2) 2M x 36

(2) 1M x 36

160MB

(2) 16M x 36

(2) 4M x 36

None

160MB

(2) 16M x 36

(2) 2M x 36

(2) 2M x 36

168MB

(2) 16M x 36

(2) 4M x 36

(2) 1M x 36

176MB

(2) 16M x 36

(2) 4M x 36

(2) 2M x 36

192MB

(2) 16M x 36

(2) 8M x 36

None

192MB

(2) 16M x 36

(2) 4M x 36

(2) 4M x 36

200MB

(2) 16M x 36

(2) 8M x 36

(2) 1M x 36

208MB

(2) 16M x 36

(2) 8M x 36

(2) 2M x 36

224MB

(2) 16M x 36

(2) 8M x 36

(2) 4M x 36

256MB

(2) 16M x 36

(2) 16M x 36

None

256MB

(2) 16M x 36

(2) 8M x 36

(2) 8M x 36

264MB

(2) 16M x 36

(2) 16M x 36

(2) 1M x 36

272MB

(2) 16M x 36

(2) 16M x 36

(2) 2M x 36

288MB

(2) 16M x 36

(2) 16M x 36

(2) 4M x 36

320MB

(2) 16M x 36

(2) 16M x 36

(2) 8M x 36

384MB

(2) 16M x 36

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

CPU SPEED SELECTION

CPU speed

Clock speed

Multiplier

JP7

JP8

JP20

180MHz

60MHz

3x

Closed

Open

1 & 2, 3 & 4, 7 & 8

200MHz

66MHz

3x

Open

Closed

1 & 2, 3 & 4, 7 & 8

Note: Pins designated should be in the closed position.
